Woven

GTF 200

Thrace-LINQ® GTF-200 is woven in a stable weave pattern; using high-tenacity polypropylene slit film yarns. This geotextile has been UV stabilized and is resistant to commonly encountered chemicals, mildew, and insects, found in soil. Thrace-LINQ® GTF-200 meets AASHTO M288-06 Class 3 standards.

Notes

Puncture ASTM D4833 is not recognized by AASHTO M288 and has been replaced with CBR Puncture ASTM D6241.

Mullen Burst ASTM D3786 removed. Not recognized by ASTM D35 on Geosynthetics

Physical properties reflect industry standards. Roll Data may reflect higher values than those listed above. Roll lengths and widths have a tolerance of +/- 1%.

The property values listed above are effective 09/2012 and are subject to change without notice.

This information relates to the specific material designated and may not be valid for such material used in combination with any other materials or in any process. Such information is, to the best of our knowledge and belief, accurate and reliable as of the date manufactured. However, no representation, warranty or guarantee is made as to its accuracy, reliability or completeness. It is the user’s responsibility to satisfy himself or herself as to the suitability and completeness of such information for his or her own particular use. We do not accept liability for any loss or damage that may occur from the use of this information, nor do we offer any warranty against infringement.

LINQ and the Thrace-LINQ emblem are registered trademarks of Thrace-LINQ, Inc.

GTF-300

Thrace-LINQ® GTF-300 is woven in a stable weave pattern; using high-tenacity polypropylene slit film yarns. This geotextile has been UV stabilized and is resistant to commonly encountered chemicals, mildew, and insects, found in soil. Thrace-LINQ® GTF-300 meets AASHTO M288-06 Class 1 standards.

Notes:

Puncture ASTM D4833 is not recognized by AASHTO M288 and has been replaced with CBR Puncture ASTM D6241.

Mullen Burst ASTM D3786 removed. Not recognized by ASTM D35 on Geosynthetics.

Physical properties reflect industry standards. Roll Data may reflect higher values than those listed above.

Roll lengths and widths have a tolerance of +/- 1%.

The property values listed above are effective 09/2012 and are subject to change without notice.

This information relates to the specific material designated and may not be valid for such material used in combination with any other materials or in any process. Such information is, to the best of our knowledge and belief, accurate and reliable as of the date manufactured. However, no representation, warranty or guarantee is made as to its accuracy, reliability or completeness. It is the user’s responsibility to satisfy himself or herself as to the suitability and completeness of such information for his or her own particular use. We do not accept liability for any loss or damage that may occur from the use of this information, nor do we offer any warranty against infringement.

LINQ and the Thrace-LINQ emblem are registered trademarks of Thrace-LINQ, Inc.

PROPERTY

TEST PROCEDURE

METRIC

ENGLISH

MARV

MARV

Grab Tensile Strength

ASTM-D4632

1401

N

315

lbs

Grab Tensile Elongation

ASTM-D4632

15 / 15

%

15 / 15

%

Trapezoid Tear

ASTM-D4533

512 / 512

N

115 / 115

lbs

CBR Puncture

ASTM-D6241

4448

N

1000

lbs

Permittivity

ASTM-D4491

0.05

sec -1

0.05

sec -1

WaterFlow Rate

ASTM-D4491

163

l/min/m2

4

gpm/ft2

Apparent Opening Size (AOS )

ASTM-D4751

0.425

mm

40

USSieve

UV Stability @ 500 hrs

ASTM-D4355

80

%

80

%



Thrace-LINQ® GTF-300 is woven in a stable weave pattern; using high-tenacity polypropylene slit film yarns. This geotextile has been UV stabilized and is resistant to commonly encountered chemicals, mildew, and insects, found in soil. Thrace-LINQ® GTF-300 meets AASHTO M288-06 Class 1 standards.

Notes: Puncture ASTM D4833 is not recognized by AASHTO M288 and has been replaced with CBR Puncture ASTM D6241. Mullen Burst ASTM D3786 removed. Not recognized by ASTM D35 on Geosynthetics.

PACKAGING

METRIC

ENGLISH

Area

Width

Length

Est. Weight

Area

Width

Length

Est. Weight

m2

m

m

kg

yd2

ft

ft

lbs

Roll Sizes

502

3.8

131.7

111

600

12.5

432

244

502

4.6

109.7

112

600

15

360

246

502

5.3

94.2

113

600

17.5

309

249

Physical properties reflect industry standards. Roll Data may reflect higher values than those listed above. Roll lengths and widths have a tolerance of +/- 1%.

The property values listed above are effective 09/2012 and are subject to change without notice.

This information relates to the specific material designated and may not be valid for such material used in combination with any other materials or in any process. Such information is, to the best of our knowledge and belief, accurate and reliable as of the date manufactured. However, no representation, warranty or guarantee is made as to its accuracy, reliability or completeness. It is the user’s responsibility to satisfy himself or herself as to the suitability and completeness of such information for his or her own particular use. We do not accept liability for any loss or damage that may occur from the use of this information, nor do we offer any warranty against infringement.

LINQ and the Thrace-LINQ emblem are registered trademarks of Thrace-LINQ, Inc.

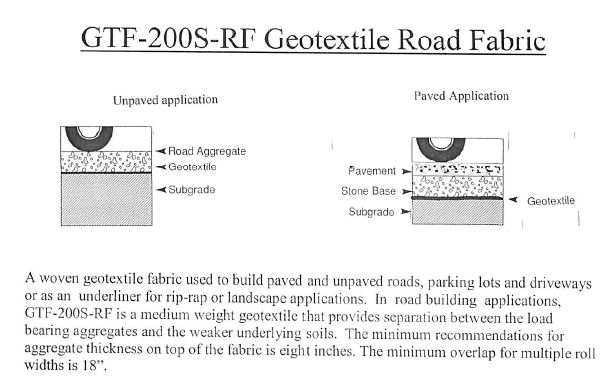

GTF-2000F-RF-Geotextile Road Fabric
